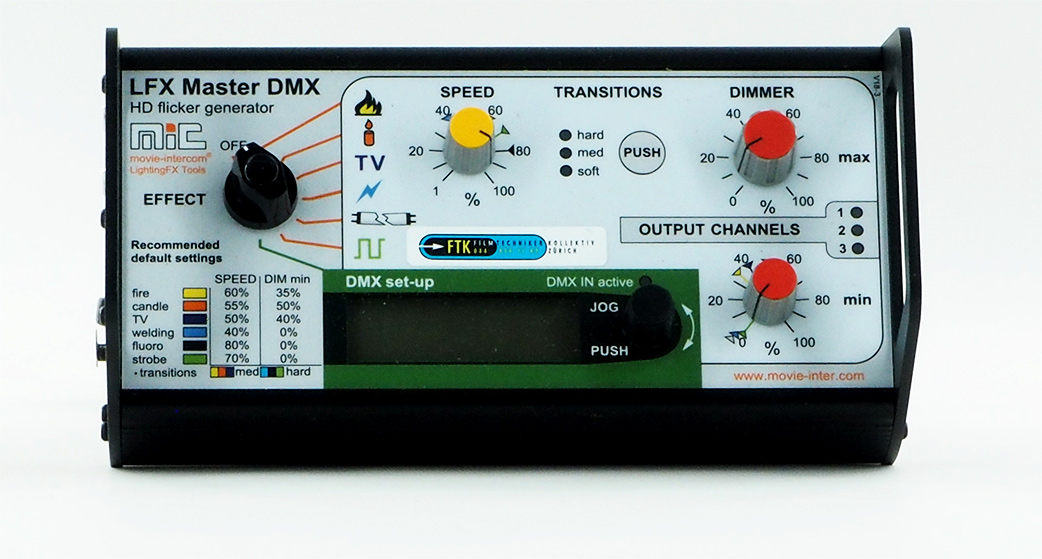

LFX Master DMX flickerbox

CHF 50.00
pro Stk./Drehtag
exkl. MwSt
Gewicht: 0.00 kg

Beschreibung

Alias: Lichteffektgenerator LFX Master DMX


Specifications
order code
lmdx
operating voltage
6 – 32 VDC, universal PSU included for 90 – 240 VAC, 120mA, 50/60 Hz
temperature operating range
-10°C …65°C (50 … 149°F)
Dimensions  (l x w x h)
20 x 11 x 8.6 cm (7.9″ x 4.3″ x 3.4″)
weight
650 gramms (1.4 lbs) without PSU
DMX protocol
USITT DMX-512-A
DMX sockets
5-pin XLR
DMX output
assisted configuration with device preset or custom DMX configuration.
Set DMX channels for CCT, G/M, gel and RGB or allocate an output channel to a DMX channel.
Device presets
Pre-defined DMX set-up for Kino Flo: FreeStyle LED, Select LED, Diva-Lite LED, Celeb LED, Parabeam, Parazip
Arri: Skypanel-C, L5-C, L7-C, L10-C, Broadcaster 2+; generic 2-channel LED, 12-channel tungsten dimmer pack, custom DMX channel allocation for all others
DMX input presets
Extend the functionality with a simple DMX console and presets @ DMX INPUT (optional dimmer console required)


separate dim (max & min) control for output channels 1, 2 and 3
remote control via DMX IN for all effects
DMX patch to any device channel or LFX Master DMX function
resolution preset
24 fps, 60 seconds loop
HD effects
Fire, Candle, TV, Welding, “broken” fluoro, strobe

Strobe t= 67.5 msec …28 secs, aspect ratio 50%
enclosure
made of 3 mm thick aluminum
